A First Look at Docker Application Package “docker-app”

7 min read



Did you know? There are more than 300,000 Docker Compose files on GitHub.

Docker Compose is a tool for defining and running multi-container Docker applications. It  is an amazing developer tool to create the development environment for your application stack. It allows you to define each component of your application following a clear and simple syntax in YAML files. It works in all environments: production, staging, development, testing, as well as CI workflows. Though Compose files are easy to describe a set of related services but there are couple of problems which has emerged in the past. One of the major concern has been around multiple environments to deploy the application with small configuration differences.

Consider a scenario where you have separate development, test, and production environments for your Web application. Under development environment, your team might be spending time in building up Web application(say, WordPress), developing WP Plugins and templates, debugging the issue etc.  When you are in development you’ll probably want to check your code changes in real-time. The usual way to do this is mounting a volume with your source code in the container that has the runtime of your application. But for production this works differently. Before you host your web application in production environment, you might want to turn-off the debug mode and host it under the right port so as to test your application usability and accessibility. In production you have a cluster with multiple nodes, and in most of the case volume is local to the node where your container (or service) is running, then you cannot mount the source code without complex stuff that involve code synchronization, signals, etc. In nutshell, this might require multiple Docker compose files for each environment and as your number of service applications increases, it becomes more cumbersome to manage those pieces of Compose files. Hence, we need a tool which can ease the way Compose files can be shareable across  different environment seamlessly.

To solve this problem, Docker, Inc recently announced a new tool called “docker-app”(Application Packages) which makes “Compose files more reusable and shareable”. This tool not only makes Compose file shareable but provide us with simplified approach to share multi-service application (not just Docker Image) directly on Dockerhub.





Under this blog post, I will showcase how docker-app tool makes it easier to use Docker Compose for sharing and collaboration and then pushing it directly to DockerHub. Let us get started-

Prerequisite:

  • Click on Icon near to Instance to choose 3 Managers & 2 Worker Nodes

Deploy 5 Node Swarm Mode Cluster

$ docker node ls
ID                            HOSTNAME            STATUS              AVAILABILITY        MANAGER STATUS      ENGINE VERSION
juld0kwbajyn11gx3bon9bsct *   manager1            Ready               Active              Leader              18.03.1-ce
uu675q2209xotom4vys0el5jw     manager2            Ready               Active              Reachable           18.03.1-ce
05jewa2brfkvgzklpvlze01rr     manager3            Ready               Active              Reachable           18.03.1-ce
n3frm1rv4gn93his3511llm6r     worker1             Ready               Active                                  18.03.1-ce
50vsx5nvwx5rbkxob2ua1c6dr     worker2             Ready               Active                                  18.03.1-ce

Cloning the Repository

$ git clone https://github.com/ajeetraina/app
Cloning into 'app'...remote: Counting objects: 14147, done.
remote: Total 14147 (delta 0), reused 0 (delta 0), pack-reused 14147Receiving objects: 100% (14147/14147), 17.32 MiB | 18.43 MiB/s, done.
Resolving deltas: 100% (5152/5152), done.

Installing docker-app

wget https://github.com/docker/app/releases/download/v0.3.0/docker-app-linux.tar.gz
tar xf docker-app-linux.tar.gz
cp docker-app-linux /usr/local/bin/docker-app

OR

$ ./install.sh
Connecting to github.com (192.30.253.112:443)
Connecting to github-production-release-asset-2e65be.s3.amazonaws.com (52.216.227.152:443)
docker-app-linux.tar 100% |**************************************************************|  8780k  0:00:00 ETA
[manager1] (local) root@192.168.0.13 ~/app
$

Verify docker-app version

$ docker-app version
Version:      v0.3.0
Git commit:   fba6a09
Built:        Fri Jun 29 13:09:30 2018
OS/Arch:      linux/amd64
Experimental: off
Renderers:    none

The docker-app tool comes with various options as shown below:

$ docker-app
Build and deploy Docker applications.

Usage:
  docker-app [command]

Available Commands:
  deploy      Deploy or update an application
  helm        Generate a Helm chart
  help        Help about any command
  init        Start building a Docker application
  inspect     Shows metadata and settings for a given application
  ls          List applications.
  merge       Merge the application as a single file multi-document YAML
  push        Push the application to a registry
  render      Render the Compose file for the application
  save        Save the application as an image to the docker daemon(in preparation for push)
  split       Split a single-file application into multiple files
  version     Print version information

Flags:
      --debug   Enable debug mode
  -h, --help    help for docker-app

Use "docker-app [command] --help" for more information about a command.
[manager1] (local) root@192.168.0.48 ~/app

WordPress Application under dev & Prod environment

If you browse to app/examples/wordpress directory under GitHub Repo, you will see that there is a folder called wordpress.dockerapp that contains three YAML documents:

  • metadatas
  • the Compose file
  • settings for your application

Okay, Fine ! But how you created those files?

The docker-app tool comes with an option “init” which initialize any application with the above  3 YAML files and the directory structure can be initialized with the below command:

docker-app init --single-file wordpress

I have already created a directory structure for my environment and you can find few examples under this directory.

Listing the WordPress Application package related files/directories

$ ls
README.md            install-wp           with-secrets.yml
devel                prod                 wordpress.dockerapp

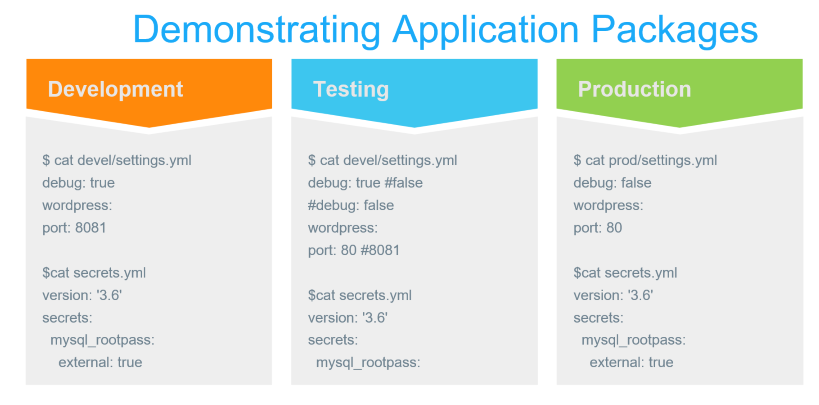

As you see above, I have created each folder for my environment – dev and prod. Under these directories, I have created prod-settings.yml and dev-settings.yml. You can view the content via this link.

WordPress Application Package for Dev Environ

I can pass “-f” <YAML> parameter to docker-app tool to render the respective environment settings seamlessly as shown below:

$ docker-app render wordpress -f devel/dev-settings.yml
version: "3.6"
services:
  mysql:
    deploy:
      mode: replicated
      replicas: 1
      endpoint_mode: dnsrr
    environment:
      MYSQL_DATABASE: wordpressdata
      MYSQL_PASSWORD: wordpress
      MYSQL_ROOT_PASSWORD: wordpress101
      MYSQL_USER: wordpress
    image: mysql:5.6
    networks:
      overlay: null
    volumes:
    - type: volume
      source: db_data
      target: /var/lib/mysql
  wordpress:
    depends_on:
    - mysql
    deploy:
      mode: replicated
      replicas: 1
      endpoint_mode: vip
    environment:
      WORDPRESS_DB_HOST: mysql
      WORDPRESS_DB_NAME: wordpressdata
      WORDPRESS_DB_PASSWORD: wordpress
      WORDPRESS_DB_USER: wordpress
      WORDPRESS_DEBUG: "true"
    image: wordpress
    networks:
      overlay: null
    ports:
    - mode: ingress
      target: 80
      published: 8082
      protocol: tcp
networks:
  overlay: {}
volumes:
  db_data:
    name: db_data

WordPress Application Package for Prod

Under Prod environment, I have the following content under prod/prod-settings.yml as shown :

debug: false
wordpress:
  port: 80

For production environment, it is obvious that I want my application to be exposed under the standard port:80. Post rendering, you should be able to see port:80 exposed as shown below in the snippet:

 image: wordpress
    networks:
      overlay: null
    ports:
    - mode: ingress
      target: 80
      published: 80
      protocol: tcp
networks:
  overlay: {}
volumes:
  db_data:
    name: db_data



Inspect the WordPress App

$ docker-app inspect wordpress
wordpress 1.0.0
Maintained by: ajeetraina <ajeetraina@gmail.com>

Welcome to Collabnix

Setting                       Default
-------                       -------
debug                         true
mysql.database                wordpressdata
mysql.image.version           5.6
mysql.rootpass                wordpress101
mysql.scale.endpoint_mode     dnsrr
mysql.scale.mode              replicated
mysql.scale.replicas          1
mysql.user.name               wordpress
mysql.user.password           wordpress
volumes.db_data.name          db_data
wordpress.port                8081
wordpress.scale.endpoint_mode vip
wordpress.scale.mode          replicated
wordpress.scale.replicas      1
[manager1] (local) root@192.168.0.13 ~/app/examples/wordpress
$

Deploying the WordPress App

$ docker-app deploy wordpress
Creating network wordpress_overlay
Creating service wordpress_mysql
Creating service wordpress_wordpress

Switching to Dev Environ

If I want to switch back to Dev environment, all I need is to pass the dev specific YAML file using “-f” parameter  as shown below:

$docker-app deploy wordpress -f devel/dev-settings.yml

docker-app

Switching to Prod Environ

$docker-app deploy wordpress -f prod/prod-settings.yml

docker-app

[manager1] (local) root@192.168.0.48 ~/app/examples/wordpress
$ docker-app deploy -f devel/dev-settings.yml
Updating service wordpress_wordpress (id: l95b4s6xi7q5mg7vj26lhzslb)
Updating service wordpress_mysql (id: lhr4h2uaer861zz1b04pst5sh)
[manager1] (local) root@192.168.0.48 ~/app/examples/wordpress
$ docker-app deploy -f prod/prod-settings.yml
Updating service wordpress_wordpress (id: l95b4s6xi7q5mg7vj26lhzslb)
Updating service wordpress_mysql (id: lhr4h2uaer861zz1b04pst5sh)
[manager1] (local) root@192.168.0.48 ~/app/examples/wordpress
$

Pushing Application Package to Dockerhub

So I have my application ready to be pushed to Dockerhub. Yes, you heard it right. I said, Application packages and NOT Docker Image.

Let me first authenticate myself before I push it to Dockerhub registry:

$ docker login
Login with your Docker ID to push and pull images from Docker Hub. If you don't have a Docker ID, head over to
 https://hub.docker.com to create one.
Username: ajeetraina
Password:
Login Succeeded
[manager1] (local) root@192.168.0.48 ~/app/examples/wordpress
$

Saving this Application Package as Docker Image

The docker-app CLI is feature-rich and allows to save the entire application as a Docker Image. Let’s try it out –

[manager1] (local) root@192.168.0.48 ~/app/examples/wordpress
$ docker-app save wordpress
Saved application as image: wordpress.dockerapp:1.0.0
[manager1] (local) root@192.168.0.48 ~/app/examples/wordpress
$

Listing out the images

$ docker images
REPOSITORY            TAG                 IMAGE ID            CREATED             SIZE
wordpress.dockerapp   1.0.0               c1ec4d18c16c        47 seconds ago      1.62kB
mysql                 5.6                 97fdbdd65c6a        3 days ago          256MB
[manager1] (local) root@192.168.0.48 ~/app/examples/wordpress
$

Listing out the services

$ docker stack services wordpress
ID                  NAME                  MODE                REPLICAS            IMAGE               PORTS
l95b4s6xi7q5        wordpress_wordpress   replicated          1/1                 wordpress:latest    *:80->80
/tcp
lhr4h2uaer86        wordpress_mysql       replicated          1/1                 mysql:5.6
[manager1] (local) root@192.168.0.48 ~/docker101/play-with-docker/visualizer

Using docker-app ls command to list out the application packages

The ‘ls’ command has been recently introduced under v0.3.0. Let us try it once –

$ docker-app ls
REPOSITORY            TAG                 IMAGE ID            CREATED              SIZE
wordpress.dockerapp   1.0.1               299fb78857cb        About a minute ago   1.62kB
wordpress.dockerapp   1.0.0               c1ec4d18c16c        16 minutes ago       1.62kB

Pusing it to Dockerhub

$ docker-app push --namespace ajeetraina --tag 1.0.1
The push refers to repository [docker.io/ajeetraina/wordpress.dockerapp]
51cfe2cfc2a8: Pushed
1.0.1: digest: sha256:14145fc6e743f09f92177a372b4a4851796ab6b8dc8fe49a0882fc5b5c1be4f9 size: 524

Say, you built WordPress application package and pushed it to Dockerhub. Now one of your colleague want to pull it on his development system and deploy in his environment.

Pulling it from Dockerhub

$ docker pull ajeetraina/wordpress.dockerapp:1.0.1
1.0.1: Pulling from ajeetraina/wordpress.dockerapp
a59931d48895: Pull complete
Digest: sha256:14145fc6e743f09f92177a372b4a4851796ab6b8dc8fe49a0882fc5b5c1be4f9
Status: Downloaded newer image for ajeetraina/wordpress.dockerapp:1.0.1
[manager3] (local) root@192.168.0.24 ~/app
$ docker images
REPOSITORY                       TAG                 IMAGE ID            CREATED             SIZE
ajeetraina/wordpress.dockerapp   1.0.1               299fb78857cb        8 minutes ago       1.62kB
[manager3] (local) root@192.168.0.24 ~/app
$

Deploying the Application

$ docker images
REPOSITORY                       TAG                 IMAGE ID            CREATED             SIZE
ajeetraina/wordpress.dockerapp   1.0.1               299fb78857cb        9 minutes ago       1.62kB
[manager3] (local) root@192.168.0.24 ~/app
$ docker-app deploy ajeetraina/wordpress
Creating network wordpress_overlay
Creating service wordpress_mysql
Creating service wordpress_wordpress
[manager3] (local) root@192.168.0.24 ~/app
$

Using docker-app merge option

Docker Team has introduced docker-app merge option under the new 0.3.0 release.

[manager1] (local) root@192.168.0.48 ~/app/examples/wordpress
$ docker-app merge -o mywordpress
[manager1] (local) root@192.168.0.48 ~/app/examples/wordpress
$ ls
README.md            install-wp           prod                 wordpress.dockerapp
devel                mywordpress          with-secrets.yml
$ cat mywordpress
version: 1.0.1
name: wordpress
description: "Welcome to Collabnix"
maintainers:
  - name: ajeetraina
    email: ajeetraina@gmail.com
targets:
  swarm: true
  kubernetes: true

--
version: "3.6"

services:

  mysql:
    image: mysql:${mysql.image.version}
    environment:
      MYSQL_ROOT_PASSWORD: ${mysql.rootpass}
      MYSQL_DATABASE: ${mysql.database}
      MYSQL_USER: ${mysql.user.name}
      MYSQL_PASSWORD: ${mysql.user.password}
    volumes:
       - source: db_data
         target: /var/lib/mysql
         type: volume
    networks:
       - overlay
    deploy:
      mode: ${mysql.scale.mode}
      replicas: ${mysql.scale.replicas}
      endpoint_mode: ${mysql.scale.endpoint_mode}

  wordpress:
    image: wordpress
    environment:
      WORDPRESS_DB_USER: ${mysql.user.name}
      WORDPRESS_DB_PASSWORD: ${mysql.user.password}
      WORDPRESS_DB_NAME: ${mysql.database}
      WORDPRESS_DB_HOST: mysql
      WORDPRESS_DEBUG: ${debug}
    ports:
      - "${wordpress.port}:80"
    networks:
      - overlay
    deploy:
      mode: ${wordpress.scale.mode}
      replicas: ${wordpress.scale.replicas}
      endpoint_mode: ${wordpress.scale.endpoint_mode}
    depends_on:
      - mysql

volumes:
  db_data:
     name: ${volumes.db_data.name}

networks:
  overlay:

--
debug: true
mysql:
  image:
    version: 5.6
  rootpass: wordpress101
  database: wordpressdata
  user:
    name: wordpress
    password: wordpress
  scale:
    endpoint_mode: dnsrr
    mode: replicated
    replicas: 1
wordpress:
  scale:
    mode: replicated
    replicas: 1
    endpoint_mode: vip
  port: 8081
volumes:
  db_data:
    name: db_data

docker-app comes with a few other helpful commands as well, in particular the ability to create Helm Charts from your Docker Applications. This can be useful if you’re adopting Kubernetes, and standardising on Helm to manage the lifecycle of your application components, but want to maintain the simplicity of Compose when writing you applications. This also makes it easy to run the same applications locally just using Docker, if you don’t want to be running a full Kubernetes cluster.

Did you find this blog helpful?  Feel free to share your experience. Get in touch with me at twitter @ajeetsraina.

If you want to keep track of latest Docker related information, follow me at https://www.linkedin.com/in/ajeetsraina/.

Have Queries? Join https://launchpass.com/collabnix

Ajeet Raina Ajeet Singh Raina is a former Docker Captain, Community Leader and Distinguished Arm Ambassador. He is a founder of Collabnix blogging site and has authored more than 700+ blogs on Docker, Kubernetes and Cloud-Native Technology. He runs a community Slack of 9800+ members and discord server close to 2600+ members. You can follow him on Twitter(@ajeetsraina).
Join our Discord Server
Index
