Top 5 Cool Projects around Docker, Raspberry Pi & Blinkt! ~ Monitoring Docker Swarm using LEDs – Part I

3 min read

https://www.youtube.com/watch?v=vyWRg-OCwNo

Two week back, I travelled to Jaipur, around 1000+ miles from Bangalore for delivering one of Docker Session. I was invited as a Guest Speaker for “IIEC Connect” event conducted by LinuxWorld Inc. held in GD Badaya Auditorium, Jaipur which accommodated around 500-600+ engineering students.

It was an amazing experience with dozens of questions at the end of the session. The session lasted for 3 hours and I was just amazed when 90% hands got raised when I asked “How many of you know about Docker?”. I compiled 120+ slides for this session but skipped immediately to advanced talk so as to keep the audience intact. I talked about how industry is using Docker with some real time in-house projects like Pico, OpenUSM & Docker in the data centre.

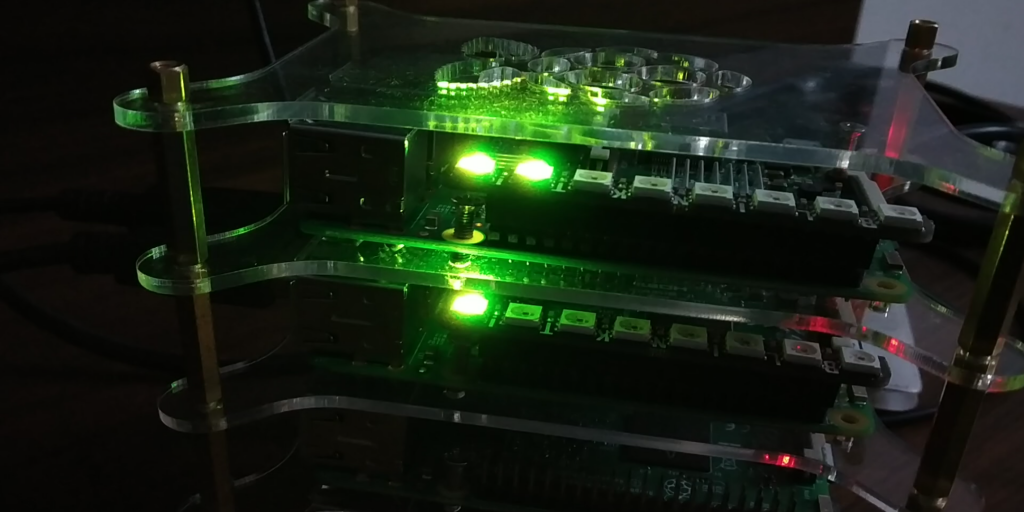

During the end of the session, I showcased an interesting demonstration around monitoring Docker Swarm cluster using Blinkt! Pironomi LED. It was a great opportunity for me to excite the students showcasing such a cool project around Docker containers running on Raspberry Pi. Under this blog post, I will talk about how to achieve it in a detailed way.

Pre-requisite:

ItemsLink Cost
Raspberry Pi 3 Model BBuy2849 INR
Raspberry Pi 3 Model B 4-layer Dog Bone
Stack Clear Case Box Enclosure
Buy4772 INR
Pimoroni Blinkt!Buy749 INR
Raspberry Pi 3 Heat Sink Set
Buy159 INR

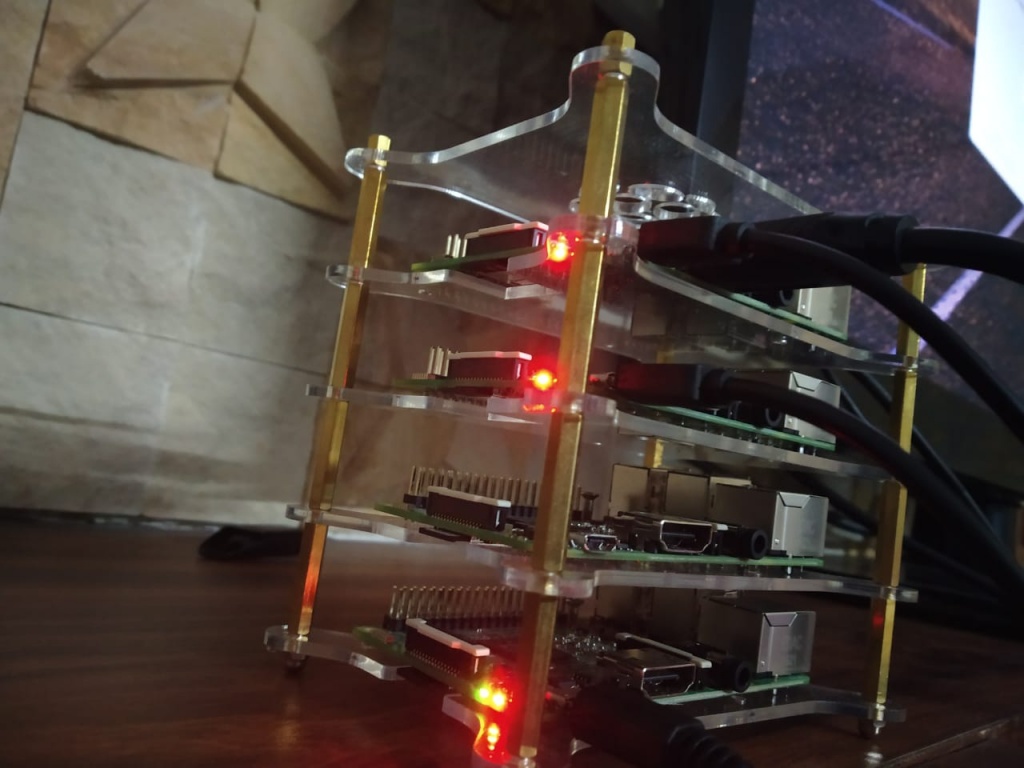

  • A Raspberry Pi Node Cluster Stack
  • Blinkt

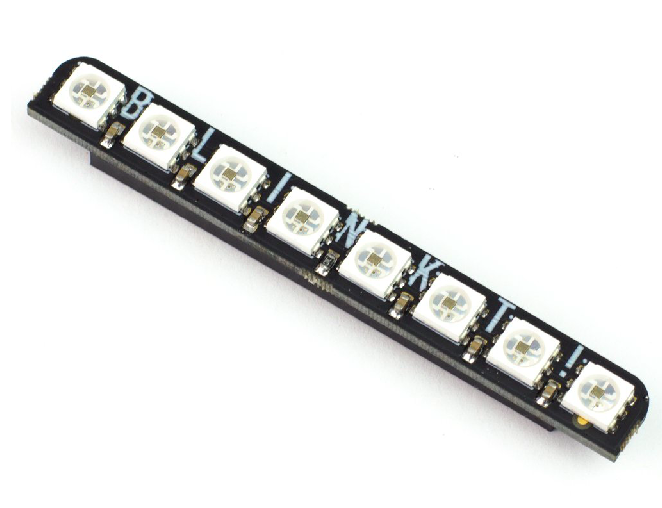

Blinkt! is an eight super-bright RGB LED indicators that are ideal for adding visual notifications to your Raspberry Pi. Inspired by OpenFaas founder ~ Alex Ellis’ work with his Raspberry Pi Zero Docker Cluster, Pironomi developed these boards for him to use as status indicators. Blinkt! offers eight APA102 pixels in the smallest (and cheapest) form factor to plug straight onto your Raspberry Pi.

Features

  • Eight APA102 RGB LEDs
  • Individually controllable pixels
  • Sits directly on top of your Pi in a tiny footprint
  • Fits inside most Pi cases
  • Doesn’t interfere with PWM audio
  • Blinkt! pinout
  • Compatible with Raspberry Pi 3B+, 3, 2, B+, A+, Zero, and Zero W
  • Python library
  • Comes fully assembled

Installing Docker on all 3 Nodes – 1 Manager and 2 worker nodes

Follow link to install Docker 18.09 on all the Raspberry Node cluster

root@raspberrypi:/home/pi# docker version
Client:
 Version:           18.09.0
 API version:       1.39
 Go version:        go1.10.4
 Git commit:        4d60db4
 Built:             Wed Nov  7 00:57:21 2018
 OS/Arch:           linux/arm
 Experimental:      false

Server: Docker Engine - Community
 Engine:
  Version:          18.09.0
  API version:      1.39 (minimum version 1.12)
  Go version:       go1.10.4
  Git commit:       4d60db4
  Built:            Wed Nov  7 00:17:57 2018
  OS/Arch:          linux/arm
  Experimental:     false
root@raspberrypi:/home/pi#

Setting up Swarm Manager Node

root@raspberrypi:/home/pi# docker swarm init --advertise-addr 192.168.43.134 --listen-addr 192.168.43.134:2377
Swarm initialized: current node (j7i394an31gsevxt3fndzvum5) is now a manager.

To add a worker to this swarm, run the following command:

    docker swarm join --token SWMTKN-1-1zbsutds2u5gk5qwx0qbf95uccogrjx1ukszxxxxx-bcptng4inxxxldvvx17tn2l 192.168.43.134:2377

To add a manager to this swarm, run 'docker swarm join-token manager' and follow the instructions.

root@raspberrypi:/home/pi#
pi@raspberrypi:~ $ sudo docker swarm join --token SWMTKN-1-1zbsutds2u5gk5qwx0qbf95uccogrjx1ukszysmxxxbcptng4invy1abldvvx17tn2l 192.168.43.134:2377
This node joined a swarm as a worker.
pi@raspberrypi:~ $

Listing the Nodes

root@raspberrypi:/home/pi# docker node ls
ID                            HOSTNAME            STATUS              AVAILABILITY        MANAGER STATUS      ENGINE VERSION
ijnqkk7vybzts7ohgt63fteoo     raspberrypi         Ready               Active                                  18.09.0
j7i394an31gsevxt3fndzvum5 *   raspberrypi         Ready               Active              Leader              18.09.0
let43cp6uoankngeg5lmd91mn     raspberrypi         Ready               Active                                  18.09.0
root@raspberrypi:/home/pi#

Running Monitor Service

A special credit to Docker Captain Stefan Schere and his work for building these piece of Docker container.

root@raspberrypi:/home/pi# docker service create --name monitor --mode global --restart-condition any --mount type=bind,src=/sys,dst=/sys --mount type=bind,src=/var/run/docker.sock,dst=/var/run/docker.sock stefanscherer/monitor:1.1.0
kvgvohexsc2e8yapol0ulwq5q
overall progress: 3 out of 3 tasks
ijnqkk7vybzt: running   [==================================================>]
let43cp6uoan: running   [==================================================>]
j7i394an31gs: running   [==================================================>]
verify: Service converged
root@raspberrypi:/home/pi#
root@raspberrypi:/home/pi# docker service create --name whoami stefanscherer/whoami:1.1.0
jd5e5hlswu8ruxgfhgbwtww84
overall progress: 1 out of 1 tasks
1/1: running   [==================================================>]
verify: Service converged

Scaling the Service to 3

root@raspberrypi:/home/pi# docker service scale whoami=3
whoami scaled to 3
overall progress: 3 out of 3 tasks
1/4: running   [==================================================>]
2/4: running   [==================================================>]
3/4: running   [==================================================>]
verify: Service converged

Scaling the service to 16

root@raspberrypi:/home/pi# docker service scale whoami=16
whoami scaled to 16
overall progress: 16 out of 16 tasks
1/16: running   [==================================================>]
2/16: running   [==================================================>]
3/16: running   [==================================================>]
4/16: running   [==================================================>]
5/16: running   [==================================================>]
6/16: running   [==================================================>]
7/16: running   [==================================================>]
8/16: running   [==================================================>]
9/16: running   [==================================================>]
10/16: running   [==================================================>]
11/16: running   [==================================================>]
12/16: running   [==================================================>]
13/16: running   [==================================================>]
14/16: running   [==================================================>]
15/16: running   [==================================================>]
16/16: running   [==================================================>]
verify: Service converged

Scaling the Service to 32

root@raspberrypi:/home/pi# docker service scale whoami=32
whoami scaled to 32
overall progress: 32 out of 32 tasks
verify: Service converged

Scaling the Service back to 4

root@raspberrypi:/home/pi# docker service scale whoami=4
whoami scaled to 4
overall progress: 4 out of 4 tasks
1/4: running   [==================================================>]
2/4: running   [==================================================>]
3/4: running   [==================================================>]
4/4: running   [==================================================>]
verify: Service converged




Listing out the service

root@raspberrypi:/home/pi# docker service ls
ID                  NAME                MODE                REPLICAS            IMAGE                         PORTS
h7ap83sidbw8        monitor             global              2/2                 stefanscherer/monitor:1.1.0
root@raspberrypi:/home/pi#

Listing the Nodes

root@raspberrypi:/home/pi# docker node ls
ID                            HOSTNAME            STATUS              AVAILABILITY        MANAGER STATUS      ENGINE VERSION
ijnqkk7vybzts7ohgt63fteoo     raspberrypi         Ready               Active                                  18.09.0
j7i394an31gsevxt3fndzvum5 *   raspberrypi         Ready               Active              Leader              18.09.0
let43cp6uoankngeg5lmd91mn     raspberrypi         Down                Active                                  18.09.0
root@raspberrypi:/home/pi#

Rolling Updates

root@raspberrypi:/home/pi# docker service update --image stefanscherer/whoami:1.2.0 \
>   --update-parallelism 4  --update-delay 2s whoami
whoami
overall progress: 2 out of 4 tasks
1/4: preparing [=================================>                 ]
2/4: running   [==================================================>]
3/4: preparing [=================================>                 ]
4/4: running   [==================================================>]
root@raspberrypi:/home/pi#

Overall, it was an amazing experience to showcase the power of Raspberry Pi to monitor Docker Swarm Cluster using Pironomi Blinkt! LEDs. In my future post, I will bring another interesting use cases around Docker & Raspberry Pi.
