Sysctl Support for Docker Swarm Cluster for the first time in Docker 19.03.0 Pre-Release

6 min read

Docker CE 19.03.0 Beta 1 went public 2 week back. It was the first release which arrived with sysctl support for Docker Swarm Mode for the first time. This is definitely a great news for popular communities like Elastic Stack, Redis etc. as they rely on tuning the kernel parameter to get rid of memory exceptions. For example, Elasticsearch uses a mmapfs directory by default to store its indices. The default operating system limits on mmap counts is likely to be too low, which may result in out of memory exceptions, hence one need to  increase the limits everytime using sysctl tool. Great to see that Docker Inc. acknowledged the fact that kernel tuning is required sometimes and provides explicit support under Docker 19.03.0 Pre-Release. Great Job !

Wait..Do I really need sysctl?

Say, you have deployed your application on Docker Swarm. it’s pretty simple and it’s working great. Your application is growing day by day and now you just need to scale it. How are you going to do it? The simple answer is: docker service scale app=<number of tasks>.Surely, it is possible today but your containers can quickly hit kernel limits. One of the most popular kernel parameter is net.core.somaxconn. This parameter represents the maximum number of connections that can be queued for acceptance. The default value on Linux is 128, which is rather low.

The Linux kernel is flexible, and you can even modify the way it works on the fly by dynamically changing some of its parameters, thanks to the sysctl command. The sysctl programs allow to limit system-wide resource use. This can help a lot in system administration, e.g. when a user starts too many processes and therefore makes the system unresponsive for other users. Sysctl basically provides an interface that allows you to examine and change several hundred kernel parameters in Linux or BSD. Changes take effect immediately, and there’s even a way to make them persist after a reboot. By using sysctl judiciously, you can optimize your box without having to recompile the kernel and get the results immediately.

Please note that Not all sysctls are namespaced as of Docker 19.03.0 CE Pre-Release. Docker does not support changing sysctls inside of a container that also modify the host system.

Docker does support setting namespaced kernel parameters at runtime & runc honors this. Have a look:

$ docker run --runtime=runc --sysctl net.ipv4.ip_forward=1 -it alpine sh
Unable to find image 'alpine:latest' locally
latest: Pulling from library/alpine
bdf0201b3a05: Pull complete
Digest: sha256:28ef97b8686a0b5399129e9b763d5b7e5ff03576aa5580d6f4182a49c5fe1913
Status: Downloaded newer image for alpine:latest
/ # sysctl net.ipv4.ip_forward
net.ipv4.ip_forward = 1
/ #

It is important to note that sysctl support is not new to Docker. The support for sysctl in Docker Compose all started during compose file format v2.1.

For example, to set Kernel parameters in the container, you can use either an array or a dictionary.

sysctls:
  net.core.somaxconn: 1024
  net.ipv4.tcp_syncookies: 0

sysctls:
  - net.core.somaxconn=1024
  - net.ipv4.tcp_syncookies=0

Under this blog post, I will showcase how to use sysctl under 2-Node Docker Swarm Cluster. Let us get started –

Installing a Node with Docker 19.03.0 Beta 1 Test Build on Ubuntu 18.10

Method:I

Downloading the static binary archive. Go to https://download.docker.com/linux/static/stable/ (or change stable to nightly or test), choose your hardware platform, and download the .tgz file relating to the version of Docker CE you want to install.

Captain'sBay==>wget https://download.docker.com/linux/static/test/x86_64/docker-19.03.0-beta1.tgz
--2019-04-10 09:20:01--  https://download.docker.com/linux/static/test/x86_64/docker-19.03.0-beta1.tgz
Resolving download.docker.com (download.docker.com)... 54.230.75.15, 54.230.75.117, 54.230.75.202, ...
Connecting to download.docker.com (download.docker.com)|54.230.75.15|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 62701372 (60M) [application/x-tar]
Saving to: ‘docker-19.03.0-beta1.tgz’
docker-19.03.0-beta1.tgz  100%[=====================================>]  59.80M  10.7MB/s    in 7.1s
2019-04-10 09:20:09 (8.38 MB/s) - ‘docker-19.03.0-beta1.tgz’ saved [62701372/62701372]
Extract the archive
You can use the tar utility. The dockerd and docker binaries are extracted.

Extract the tar file

Captain'sBay==>tar xzvf docker-19.03.0-beta1.tgz
docker/
docker/ctr
docker/containerd-shim
docker/dockerd
docker/docker-proxy
docker/runc
docker/containerd
docker/docker-init
docker/docker
Captain'sBay==>

Move the binaries to executable path

Move the binaries to a directory on your executable path It could be such as /usr/bin/. If you skip this step, you must provide the path to the executable when you invoke docker or dockerd commands.

Captain'sBay==>sudo cp -rf docker/* /usr/local/bin/

Start the Docker daemon:

$ sudo dockerd &
Client: Docker Engine - Community
 Version:           19.03.0-beta1
 API version:       1.40
 Go version:        go1.12.1
 Git commit:        62240a9
 Built:             Thu Apr  4 19:15:07 2019
 OS/Arch:           linux/amd64
 Experimental:      false

Server: Docker Engine - Community
 Engine:
  Version:          19.03.0-beta1
  API version:      1.40 (minimum version 1.12)
  Go version:       go1.12.1
  Git commit:       62240a9
  Built:            Thu Apr  4 19:22:34 2019
  OS/Arch:          linux/amd64
  Experimental:     false
 containerd:
  Version:          v1.2.5
  GitCommit:        bb71b10fd8f58240ca47fbb579b9d1028eea7c84
 runc:
  Version:          1.0.0-rc6+dev
  GitCommit:        2b18fe1d885ee5083ef9f0838fee39b62d653e30
 docker-init:
  Version:          0.18.0
  GitCommit:        fec3683
Captain'sBay==>

Testing with hello-world

Captain'sBay==>sudo docker run hello-world
Unable to find image 'hello-world:latest' locally
latest: Pulling from library/hello-world
1b930d010525: Pull complete
Digest: sha256:2557e3c07ed1e38f26e389462d03ed943586f744621577a99efb77324b0fe535
Status: Downloaded newer image for hello-world:latest
INFO[2019-04-10T09:26:23.338596029Z] shim containerd-shim started                  address="/containerd-shim/m
oby/5b23a7045ca683d888c9d1026451af743b7bf4005c6b8dd92b9e95e125e68134/shim.sock" debug=false pid=2953
Hello from Docker!
This message shows that your installation appears to be working correctly.
To generate this message, Docker took the following steps:
 1. The Docker client contacted the Docker daemon.
 2. The Docker daemon pulled the "hello-world" image from the Docker Hub.
    (amd64)
 3. The Docker daemon created a new container from that image which runs the
    executable that produces the output you are currently reading.
 4. The Docker daemon streamed that output to the Docker client, which sent it
    to your terminal.
To try something more ambitious, you can run an Ubuntu container with:
 $ docker run -it ubuntu bash
Share images, automate workflows, and more with a free Docker ID:
 https://hub.docker.com/
For more examples and ideas, visit:
 https://docs.docker.com/get-started/
## Verifying the new `docker context` command

Verifying Docker version

root@DebianBuster:~# docker version
Client:
 Version:           19.03.0-beta1
 API version:       1.40
 Go version:        go1.11.5
 Git commit:        62240a9
 Built:             Thu Apr  4 19:18:53 2019
 OS/Arch:           linux/amd64
 Experimental:      false

Server:
 Engine:
  Version:          19.03.0-beta1
  API version:      1.40 (minimum version 1.12)
  Go version:       go1.11.5
  Git commit:       62240a9
  Built:            Thu Apr  4 19:17:35 2019
  OS/Arch:          linux/amd64
  Experimental:     false
 containerd:
  Version:          1.2.5
  GitCommit:        bb71b10fd8f58240ca47fbb579b9d1028eea7c84
 runc:
  Version:          1.0.0-rc6+dev
  GitCommit:        2b18fe1d885ee5083ef9f0838fee39b62d653e30
 docker-init:
  Version:          0.18.0
  GitCommit:        fec3683
root@DebianBuster:~#

Creating a 2-Node Docker Swarm Mode Cluster

swarm-node-1:~$ sudo docker swarm init --advertise-addr 10.140.0.6 --listen-addr 10.140.0
.6:2377
Swarm initialized: current node (c78wm1g99q1a1g2sxiuawqyps) is now a manager.
To add a worker to this swarm, run the following command:
    docker swarm join --token SWMTKN-1-1bc88158q1v4b4gdof8k0u532bxzdvrgxfztwgj2r443337mja-cmhuu258lu0327
e32l0g4pl47 10.140.0.6:2377
To add a manager to this swarm, run 'docker swarm join-token manager' and follow the instructions.

Run the below command on worker node:

swarm-node2:~$ sudo docker swarm join --token SWMTKN-1-1bc88158q1v4b4gdof8k0u532bxzdvrgxf
ztwgj2r443337mja-cmhuu258lu0327e32l0g4pl47 10.140.0.6:2377
This node joined a swarm as a worker.

Listing the Swarm Mode CLuster

$ sudo docker node ls
ID                            HOSTNAME            STATUS              AVAILABILITY        MANAGER STATUS
      ENGINE VERSION
rf3xns913p4tlprmu98z2o8hi     swarm-node2         Ready               Active
      19.03.0-beta1
isbcijzlrft3ahpbzhgipwr9a *   swarm-node-1        Ready               Active              Leader
      19.03.0-beta1

Running Multi-service Docker Compose for Redis

Redis is an open source, in-memory data structure store, used as a database, cache and message broker. Redis Commander is an application that allows users to explore a Redis instance through a browser. Let us look at the below Docker compose file for Redis as well as Redis Commander shown below:

version: '3'
services:
  redis:
    hostname: redis
    image: redis

  redis-commander:
    hostname: redis-commander
    image: rediscommander/redis-commander:latest
    restart: always
    environment:
    - REDIS_HOSTS=local:redis:6379
    ports:
    - "8081:8081"

Ensure that Docker Compose is installed on your system using the below commands:

curl -L https://github.com/docker/compose/releases/download/1.24.0/docker-compose-`uname -s`-`uname -m` -o /usr/local/bin/docker-compose
chmod +x /usr/local/bin/docker-compose

Run the below command to bring up Redis application running on Docker Swarm Mode:

sudo docker stack deploy -c docker-compose.yml myapp

$ sudo docker stack deploy -c docker-compose.yml myapp
Ignoring unsupported options: restart
Creating network myapp_default
Creating service myapp_redis-commander
Creating service myapp_redis

Verifying if the services are up and running:

~$ sudo docker stack ls
NAME                SERVICES            ORCHESTRATOR
myapp               2                   Swarm

~$ sudo docker service ls
ID                  NAME                    MODE                REPLICAS            IMAGE
                    PORTS
ucakpqi7ozg1        myapp_redis             replicated          1/1                 redis:latest

fxor8v90a4m0        myapp_redis-commander   replicated          0/1                 rediscommander/redis
-commander:latest   *:8081->8081/tcp

Checking the service logs:


$ docker service logs -f myapp3_redis
myapp3_redis.1.7jpnbigi8kek@manager1    | 1:C 17 Apr 2019 06:26:08.006 # oO0OoO0OoO0Oo Redis is starting oO0OoO0OoO0Oo
myapp3_redis.1.7jpnbigi8kek@manager1    | 1:C 17 Apr 2019 06:26:08.006 # Redis version=5.0.4, bits=64, commit=00000000, modified=0, pid=1, just started
myapp3_redis.1.7jpnbigi8kek@manager1    | 1:C 17 Apr 2019 06:26:08.006 # Warning: no config file specified, using the default config. In order to specify a configfile use redis-server /path/to/redis.conf
myapp3_redis.1.7jpnbigi8kek@manager1    | 1:M 17 Apr 2019 06:26:08.009 * Running mode=standalone, port=6379.
myapp3_redis.1.7jpnbigi8kek@manager1    | 1:M 17 Apr 2019 06:26:08.009 # WARNING: The TCP backlog setting of 511 cannot be enforced because /proc/sys/net/core/somaxconn is set to the lower value of 128.

As you see above, there is a warning around /proc/sys/net/core/somaxconn lower value set to 128.

Building Docker Compose File using Sysctl parameter

Let us try to build a new Docker compose file with sysctl parameter specified:

Copy the below content and save it as a docker-compose.yml file.

version: '3'
services:
  redis:
    hostname: redis
    image: redis
  sysctls:
    net.core.somaxconn: 1024
  redis-commander:
    image: rediscommander/redis-commander:latest
    restart: always
    environment:
    - REDIS_HOSTS=local:redis:6379
    ports:
    - "8081:8081"

Running Your Redis application

$ sudo docker stack deploy -c docker-compose.yml myapp
Ignoring unsupported options: restart
Creating network myapp_default
Creating service myapp_redis
Creating service myapp_redis-commander

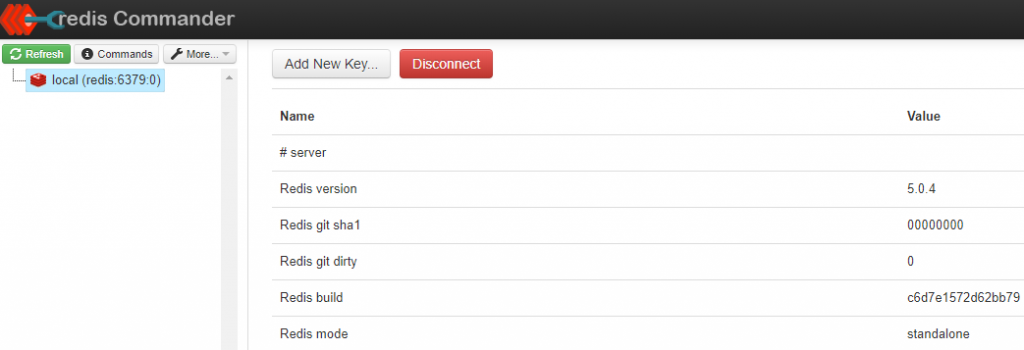

$ sudo docker service ls
ID                  NAME                    MODE                REPLICAS            IMAGE
                    PORTS
2oxhaychob7s        myapp_redis             replicated          1/1                 redis:latest

pjdwti7hkg1q        myapp_redis-commander   replicated          1/1                 rediscommander/redis
-commander:latest   *:80->8081/tcp

Verifying the Redis service logs

$ sudo docker service logs -f myapp_redis
myapp_redis.1.mp57syo3okka@swarm-node-1    | 1:C 17 Apr 2019 06:59:44.510 # oO0OoO0OoO0Oo Redis is start
ing oO0OoO0OoO0Oo
myapp_redis.1.mp57syo3okka@swarm-node-1    | 1:C 17 Apr 2019 06:59:44.510 # Redis version=5.0.4, bits=64
, commit=00000000, modified=0, pid=1, just started
myapp_redis.1.mp57syo3okka@swarm-node-1    | 1:M 17 Apr 2019 06:59:44.511 * Running mode=standalone, port=6379.

You can see that the warning around /proc/sys/net/core/somaxconn is no longer being displayed which shows that the sysctls parameter has really worked.

In my next blog post, I will talk around rootless Docker and how to get it tested. Stay tuned !
