Docker Compose v3.1 file format now supports Docker 1.13.1 Secret Management

2 min read

Docker Engine 1.13.1 went GA last week and introduced one of the most awaited feature called Secrets Management . With a mission to introduce a container native solution that strengthens the Trusted Delivery component of container security, new Secrets API is rightly integrated into Docker 1.13.1 Orchestration engine.The new secrets-management capabilities are also included in Docker Datacenter as part of the Docker 1.13.1 release.

docker secrets

What are secrets all about?

It is a blob of data, such as password, SSH private keys, certificates,API keys, and encryption keys etc..In broader term, it can be anything that can be tightly control access to.The secrets-management capability is the latest security enhancement integrated into the Docker platform so as to ensure applications are safer in a containerized environment.This is going to benefit financial sector players who look for hybrid cloud security strategy.



Why do we need Docker secrets?

There has been numerous concerns over environmental variables which are being used to pass configuration & settings to the containers.Environmental variables are easily leaked when debugging and exposed into many places including child processes, hosting secrets on a server etc.

Consider a Docker compose file for WordPress application:

wordpress:
image: wordpressapp
links:
– mariadb:mysql
environment:
– WORDPRESS_DB_PASSWORD=<password>
ports:
– “80:80”
volumes:
– ./code:/code
– ./html:/var/www/html

As shown above, environmental variables are insecure in nature because they are accessible by any process in the container, preserved in intermediate layers of an image, easily accessible through docker inspect and lastly, it can get shared with any container linked to the container. To overcome this, one can use secrets to manage any sensitive data which a container needs at runtime aand there is no need to store in the image . A  given secret is only accessible to those services which have been granted explicit access to it, and only while those service tasks are running.

How does it actually work?

Docker secrets is currently supported for Swarm mode only starting Docker Engine 1.13.1. If you are using Docker 1.12.x you might need to upgrade to the latest 1.13.x release to use this feature. To understand how secret works under Docker Swarm mode, you can follow the below process flow:



secret_compose



Docker Compose v3.1 File Format now supports Secrets

Docker compose file format v3.1 is available and requires Docker Engine 1.13.0+. It introduced support for secrets for the first time which means that now you can use secrets inside your docker-compose file.

compose_matrix

Let us test-drive Compose v3.1 file format to see how secrets can be implemented using the newer docker stack deploy utility as shown below:

Ensure that you have the latest Docker 1.13.1 running on your Swarm Mode cluster:

secret_0

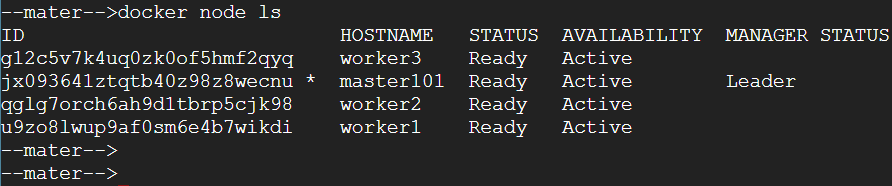

I will leverage 4-node Swarm Mode cluster to test the secret API:

secret_1



Let us first create a secret using docker secret create utility as shown:

$date | md5sum | docker secret create collab_mysqlpasswd –
72flsq9lhuj8je20y7bzfxyld

ollab# date | md5sum | docker secret create collab_mysqlrootpasswd –
1g329zm35umunim61r8q49res

collab# date | md5sum | docker secret create collab_wordpressdbpasswd –
tfxq1bm2cn54he03uzdaar91i



Listing the secret using the below command:

secret_101

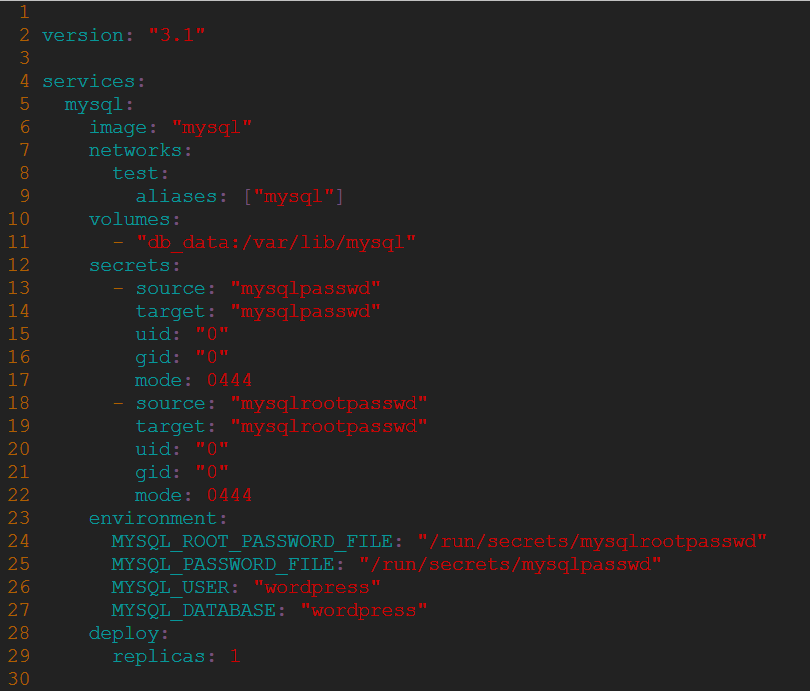

Create a docker-compose.yml file with the below entry:

PLEASE NOTE: No Compose binaries are required to run the below command. All you require is Compose v3.1 file format for this to work.

compose-1compose-2compose-3

You can copy the whole code from here

Let us now use docker stack deploy to build up the services containing secrets:

$docker stack deploy –compose-file=./docker-compose.yml collab

Updating service collab_mysql (id: yn9fqojgmtmzukqnn3tfa6wlk)

Updating service collab_web (id: xw7kx49sqrkaqriikm5lsbqmj)

Verify the services are up and running:

collab_5

Let us verify if secret got stored under every container:

root@master101:/collab# docker exec -it 35f cat /run/secrets/mysqlpasswd
050a58c339431a5c9a6a6b8a15bead91  –

As shown above, one can use docker exec to connect to the container and read the contents of the secret data file, which defaults to being readable by all and has the same name as the name of the secret.

Key Takeaways:

  • Docker secrets are only available to swarm services, not to standalone containers. To use this feature, consider adapting your container to run as a service with a scale of 1.
  • No Compose binaries are required to run docker stack deploy. All you require is Compose v3.1 file format for this to work.
  • Raft data is encrypted in Docker 1.13 and higher.
  • It is recommended to update all of your manager nodes to Docker 1.13 to prevent secrets from being written to plain-text Raft logs.
